固定片使用方式Clip Fixing
固定方法
- 焊接固定:適用於格柵板不常被拆除或永久被安裝時。
- 使用固定片及螺絲固定:適用於格柵板拆換重覆使用時,不會損及原來格柵板材料
Ways of Fixing

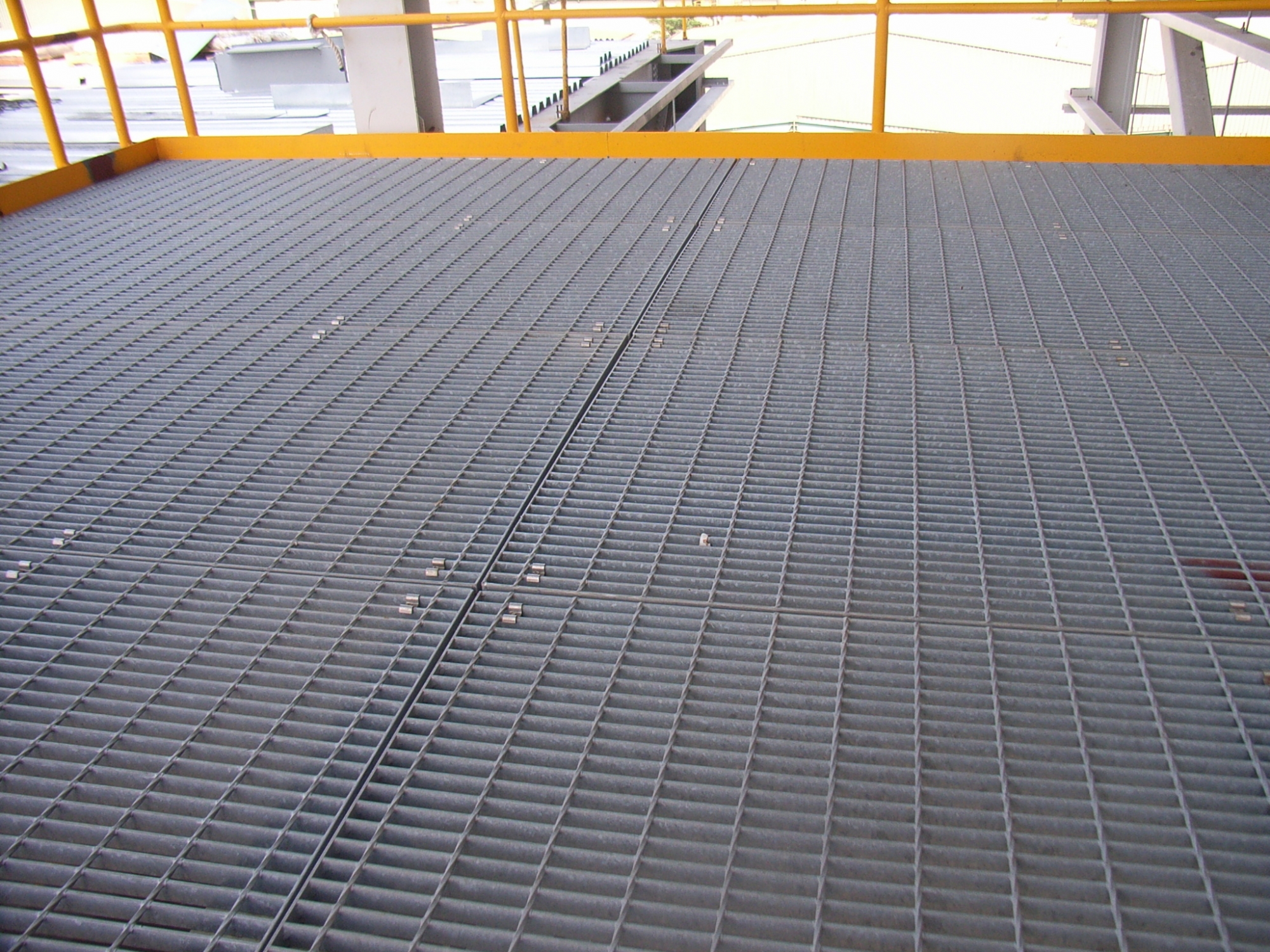

- Welded Anchorage: Recommended for all permanently installed gratings and those which are not to be removed frequently.

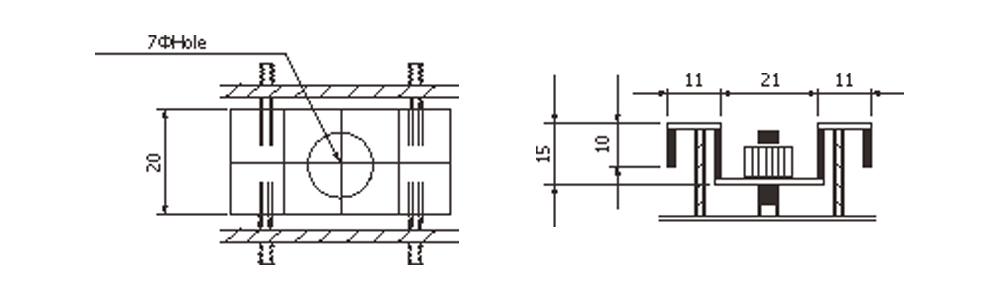

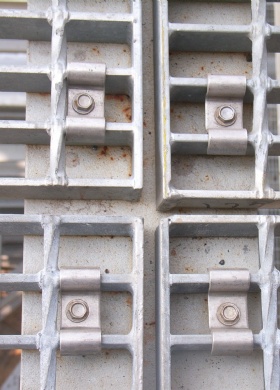

- Saddle Clips and Screws: Recommended for installations where gratings are to be removed frequently.

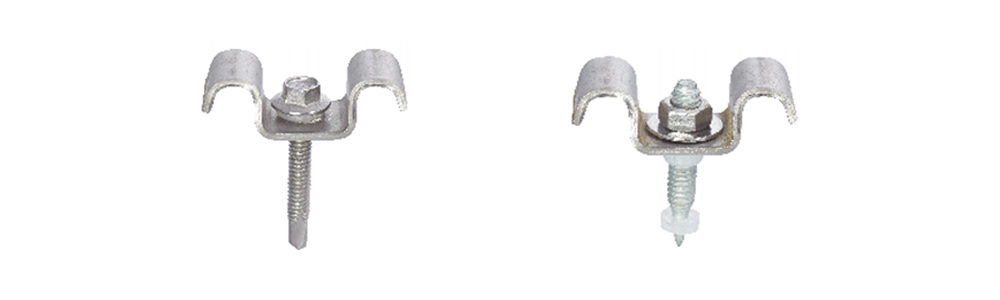

(左)
- 安裝方式:先在鋼構上鑽小孔,再自攻進去。
- 螺栓:自攻牙螺栓。
(右)
- 安裝方式:使用槍火藥打入。
- 擊釘螺栓
(left)
- Installation : Drilling a small bole on steel, then self apping into steell.
- Bolt : Self tapping screw.。
(right)
- Installation : Iinjecton
- Bolt : HILTI bolt
